Size
Load/speed
Pattern
Brand
Category
Symbol
14.9-28
130A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
130A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
28
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
135
EAN Code:
8904365500200
Factory code:
3001030013
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.8
Section Width (mm):
378
Outer Diameter (mm):
1367
Static Load Radius (mm):
627
Rolling Circumference (mm):
4089
Tread Depth (mm):
37
Weight (kg):
61.00
Pressure Chart:
14.9-28
137A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
137A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
28
Ply Rating:
12PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
135
EAN Code:
8904365502075
Factory code:
3001030040
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
2.6
Width (mm):
378
Outer Diameter (mm):
1367
Static Load Radius (mm):
627
Rolling Circumference (mm):
4089
Tread Depth (mm):
37
Weight (kg):
67.00
Pressure Chart:
14.9-28
134A6
BOSS TD15
Ascenso
Industry
Specifications
Load / Speed:
134A6
Pattern:
BOSS TD15
Category:
Industry
Width:
14.9
Structure:
D
Inch:
28
Ply Rating:
12
Speed index:
A6
Specification:
R-1
TL/TT:
TT
40HC:
135
EAN Code:
8904365523261
Factory code:
3001030120
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
2.3
Width (mm):
378
Outer Diameter (mm):
1365
Static Load Radius (mm):
625
Rolling Circumference (mm):
4082
Weight (kg):
74.23
Pressure Chart:
14.9-28
134A6
BOSS TD16
Ascenso
Industry
Specifications
Load / Speed:
134A6
Pattern:
BOSS TD16
Category:
Industry
Width:
14.9
Structure:
D
Inch:
28
Ply Rating:
12
Speed index:
A6
Specification:
R-1
TL/TT:
TT
40HC:
135
EAN Code:
8904365508268
Factory code:
3001030095
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
2.3
Width (mm):
388
Outer Diameter (mm):
1380
Static Load Radius (mm):
631
Rolling Circumference (mm):
4082
Weight (kg):
79.11
Pressure Chart:
14.9-28
137A6
TDB121
Ascenso
AGR
Specifications
Load / Speed:
137A6
Pattern:
TDB121
Category:
AGR
Width:
14.9
Structure:
D
Inch:
28
Ply Rating:
12
Speed index:
A6
Load / Speed 2:
133A8
Specification:
R-1W+
TL/TT:
TT
40HC:
135
EAN Code:
8904365505403
Factory code:
3001030081
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
2.6
Width (mm):
378
Outer Diameter (mm):
1370
Static Load Radius (mm):
627
Rolling Circumference (mm):
4097
Weight (kg):
80.91
Pressure Chart:
14.9-28
130A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
130A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
28
Ply Rating:
8
Speed index:
A8
Specification:
R-1
TL/TT:
TL
40HC:
135
EAN Code:
8904365508893
Factory code:
3001030107
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.8
Width (mm):
378
Outer Diameter (mm):
1367
Static Load Radius (mm):
626
Rolling Circumference (mm):
4089
Weight (kg):
63.83
Pressure Chart:
14.9-30
127A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
127A8
Pattern:
TDB120
Category:
AGR
Width:
14.9
Structure:
D
Inch:
30
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
118
EAN Code:
8904365502853
Factory code:
3001030059
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.8
Section Width (mm):
378
Outer Diameter (mm):
1418
Static Load Radius (mm):
652
Rolling Circumference (mm):
4241
Tread Depth (mm):
36.2
Weight (kg):
63.40
Pressure Chart:

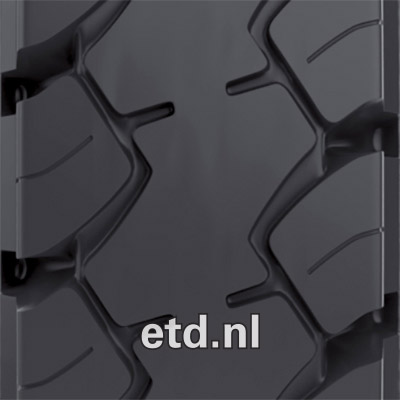

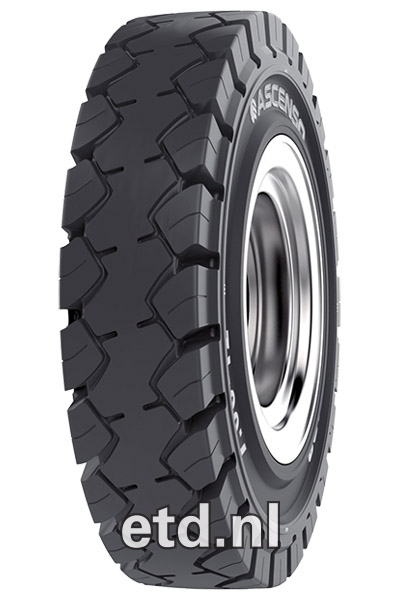

140x55-9
FLS692
Ascenso
Industry
Specifications
Pattern:
FLS692
Category:
Industry
Width:
140
Series:
55
Structure:
Solid
Inch:
9
Specification:
NHS
TL/TT:
ST
40HC:
3803
EAN Code:
8904365520819
Factory code:
3401010009JJ
Technical details
Recommended Rim:
4E-09
Width (mm):
130
Outer Diameter (mm):
376
Weight (kg):
10.25
Pressure Chart:
140x55-9
FLS692
Ascenso
Industry
Specifications
Pattern:
FLS692
Category:
Industry
Width:
140
Series:
55
Structure:
Solid
Inch:
9
Specification:
NHS
TL/TT:
LO
40HC:
3803
EAN Code:
8904365520826
Factory code:
3401010010JJ
Technical details
Recommended Rim:
4E-09
Width (mm):
130
Outer Diameter (mm):
376
Weight (kg):
10.50
Pressure Chart:
14L-16.1
138B
IMB163
Ascenso
AGR
Specifications
Load / Speed:
138B
Pattern:
IMB163
Category:
AGR
Width:
14
Structure:
D
Inch:
16.1
Ply Rating:
14
Speed index:
B
Specification:
I1 - No Emark
TL/TT:
TL
40HC:
304
EAN Code:
8904365508985
Factory code:
3001050100
Technical details
Recommended Rim:
W11C
Inflation Pressure (bar):
3
Width (mm):
356
Outer Diameter (mm):
940
Static Load Radius (mm):
424
Rolling Circumference (mm):
2811
Tread Depth (mm):
10.5
Weight (kg):
35.60
Pressure Chart:
14L-16.1
127A8
TSB112
Ascenso
AGR
Specifications
Load / Speed:
127A8
Pattern:
TSB112
Category:
AGR
Width:
14
Structure:
D
Inch:
16.1
Ply Rating:
12PR
Speed index:
A8
Specification:
F2
TL/TT:
TL
40HC:
304
EAN Code:
8904365518854
Factory code:
3001010059
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
3.6
Width (mm):
356
Outer Diameter (mm):
985
Static Load Radius (mm):
442
Rolling Circumference (mm):
2946
Tread Depth (mm):
28
Weight (kg):
44.80
Pressure Chart:
15-19.5
146A8
SSB331
Ascenso
Industry
Specifications
Load / Speed:
146A8
Pattern:
SSB331
Category:
Industry
Width:
15
Structure:
D
Inch:
19.5
Ply Rating:
14PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
220
EAN Code:
8904365502921
Factory code:
3002040019
Technical details
Recommended Rim:
11.75
Inflation Pressure (bar):
4.8
Section Width (mm):
394
Outer Diameter (mm):
1019
Static Load Radius (mm):
464
Rolling Circumference (mm):
3048
Tread Depth (mm):
21
Weight (kg):
57.10
Pressure Chart:
15-19.5
SSB331
Ascenso
Industry
Specifications
Pattern:
SSB331
Category:
Industry
Width:
15
Structure:
D
Inch:
19.5
Ply Rating:
6
Specification:
R-4
TL/TT:
TL
40HC:
220
EAN Code:
8904365516119
Factory code:
3002040052
Technical details
Recommended Rim:
11.75
Inflation Pressure (bar):
4.8
Width (mm):
394
Outer Diameter (mm):
1019
Static Load Radius (mm):
464
Rolling Circumference (mm):
3048
Weight (kg):
53.78
Pressure Chart:
15-628
168A2
BLB730
Ascenso
Industry
Specifications
Load / Speed:
168A2
Pattern:
BLB730
Category:
Industry
Width:
16.9
Structure:
D
Inch:
28
Ply Rating:
16PR
Speed index:
A2
Specification:
NHS
TL/TT:
TL
40HC:
96
EAN Code:
8904365506073
Factory code:
3002040025
Technical details
Recommended Rim:
15
Inflation Pressure (bar):
6.9
Width (mm):
388
Outer Diameter (mm):
1035
Static Load Radius (mm):
481
Rolling Circumference (mm):
3108
Tread Depth (mm):
21.5
Weight (kg):
63.90
Pressure Chart:
15.0/55-17
134A8
IMB160
Ascenso
AGR
Specifications
Load / Speed:
134A8
Pattern:
IMB160
Category:
AGR
Width:
15
Series:
55
Structure:
D
Inch:
17
Ply Rating:
10PR
Speed index:
A8
Load / Speed 2:
122A8
Specification:
I1
TL/TT:
TL
40HC:
260
EAN Code:
8904365506615
Factory code:
3001050080
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
2.7
Width (mm):
380
Outer Diameter (mm):
850
Static Load Radius (mm):
388
Rolling Circumference (mm):
2542
Tread Depth (mm):
11.5
Weight (kg):
24.00
Pressure Chart:
15.0/55-17
141A8
IMB160
Ascenso
AGR
Specifications
Load / Speed:
141A8
Pattern:
IMB160
Category:
AGR
Width:
15
Series:
55
Structure:
D
Inch:
17
Ply Rating:
14PR
Speed index:
A8
Load / Speed 2:
128A8
Specification:
I1
TL/TT:
TL
40HC:
260
EAN Code:
8904365506622
Factory code:
3001050081
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
3.8
Width (mm):
380
Outer Diameter (mm):
850
Static Load Radius (mm):
388
Rolling Circumference (mm):
2542
Tread Depth (mm):
11.5
Weight (kg):
26.70
Pressure Chart:
15.0/70-18
151A8
IMB160
Ascenso
AGR
Specifications
Load / Speed:
151A8
Pattern:
IMB160
Category:
AGR
Width:
15.0
Series:
70
Structure:
D
Inch:
18
Ply Rating:
16PR
Speed index:
A8
Load / Speed 2:
139A8
Specification:
I2
TL/TT:
TL
40HC:
225
EAN Code:
8904365500989
Factory code:
3001050009
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
4.3
Section Width (mm):
391
Outer Diameter (mm):
990
Static Load Radius (mm):
449
Rolling Circumference (mm):
2961
Tread Depth (mm):
12
Weight (kg):
42.00
Pressure Chart:
15.5-25
142A8
MIB405
Ascenso
OTR
Specifications
Load / Speed:
142A8
Pattern:
MIB405
Category:
OTR
Width:
15.5
Structure:
D
Inch:
25
Ply Rating:
12PR
Speed index:
A8
Load / Speed 2:
168A2
Specification:
L2/G2
TL/TT:
TL
40HC:
137
EAN Code:
8904365500750
Factory code:
3002140006
Technical details
Recommended Rim:
12
Inflation Pressure (bar):
2.3
Section Width (mm):
394
Outer Diameter (mm):
1277
Static Load Radius (mm):
583
Rolling Circumference (mm):
3820
Tread Depth (mm):
25.6
Weight (kg):
71.00
Pressure Chart:
15.5-25
146A8
MIB405
Ascenso
OTR
Specifications
Load / Speed:
146A8
Pattern:
MIB405
Category:
OTR
Width:
15.5
Structure:
D
Inch:
25
Ply Rating:
16PR
Speed index:
A8
Load / Speed 2:
175A2
Specification:
L2/G2
TL/TT:
TL
40HC:
137
EAN Code:
8904365501276
Factory code:
3002140005
Technical details
Recommended Rim:
12
Inflation Pressure (bar):
2.3
Section Width (mm):
394
Outer Diameter (mm):
1277
Static Load Radius (mm):
583
Rolling Circumference (mm):
3820
Tread Depth (mm):
25.6
Weight (kg):
79.00
Pressure Chart:
15.5-25
168A2
MIB406
Ascenso
Industry
Specifications
Load / Speed:
168A2
Pattern:
MIB406
Category:
Industry
Width:
15.5
Structure:
D
Inch:
25
Ply Rating:
12PR
Speed index:
A2
Load / Speed 2:
142A8
Specification:
L2/G2
TL/TT:
TL
40HC:
137
EAN Code:
8904365503133
Factory code:
3002140011
Add. Info:
Hard Surface
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
4.0
Section Width (mm):
404
Outer Diameter (mm):
1278
Static Load Radius (mm):
583
Rolling Circumference (mm):
3822
Tread Depth (mm):
25.4
Weight (kg):
85.00
Pressure Chart:
15.5-25
168A2
WLB550
Ascenso
OTR
Specifications
Load / Speed:
168A2
Pattern:
WLB550
Category:
OTR
Width:
15.5
Structure:
D
Inch:
25
Ply Rating:
12PR
Speed index:
A2
Specification:
L3/E3
TL/TT:
TL
40HC:
137
EAN Code:
8904365506493
Factory code:
3003110013
Technical details
Recommended Rim:
12.00/1.3
Inflation Pressure (bar):
4.0
Width (mm):
394
Outer Diameter (mm):
1278
Static Load Radius (mm):
583
Rolling Circumference (mm):
3838
Tread Depth (mm):
25
Weight (kg):
94.00
Pressure Chart:
15.5-38
133A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
133A8
Pattern:
TDB120
Category:
AGR
Width:
15.5
Structure:
D
Inch:
38
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
82
EAN Code:
8904365500255
Factory code:
3001030022
Technical details
Recommended Rim:
W14L
Inflation Pressure (bar):
1.8
Section Width (mm):
394
Outer Diameter (mm):
1569
Static Load Radius (mm):
732
Rolling Circumference (mm):
4693
Tread Depth (mm):
33.7
Weight (kg):
75.00
Pressure Chart:
15.5-38
141A6
TDB120
Ascenso
AGR
Specifications
Load / Speed:
141A6
Pattern:
TDB120
Category:
AGR
Width:
15.5
Structure:
D
Inch:
38
Ply Rating:
12PR
Speed index:
A6
Specification:
R1
TL/TT:
TT
40HC:
82
EAN Code:
8904365506011
Factory code:
3001030085
Technical details
Recommended Rim:
W14L
Inflation Pressure (bar):
2.8
Width (mm):
394
Outer Diameter (mm):
1569
Static Load Radius (mm):
732
Rolling Circumference (mm):
4712
Tread Depth (mm):
33.7
Weight (kg):
81.60
Pressure Chart:
15.5-38
133A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
133A8
Pattern:
TDB120
Category:
AGR
Width:
15.5
Structure:
D
Inch:
38
Ply Rating:
8
Speed index:
A8
Specification:
R-1
TL/TT:
TL
40HC:
82
EAN Code:
8904365508961
Factory code:
3001030115
Technical details
Recommended Rim:
W14L
Inflation Pressure (bar):
1.8
Width (mm):
394
Outer Diameter (mm):
1569
Static Load Radius (mm):
732
Rolling Circumference (mm):
4693
Weight (kg):
81.84
Pressure Chart:
15.5/70-18
143A8
BHB314
Ascenso
Industry
Specifications
Load / Speed:
143A8
Pattern:
BHB314
Category:
Industry
Width:
400
Series:
70
Structure:
D
Inch:
18
Ply Rating:
10PR
Speed index:
A8
Load / Speed 2:
135A2
Specification:
R4 CR
TL/TT:
TL
40HC:
170
EAN Code:
8904365520130
Factory code:
3002020064
Add. Info:
Cut Resistant
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
2.6
Width (mm):
400
Outer Diameter (mm):
1030
Static Load Radius (mm):
503
Rolling Circumference (mm):
3046
Tread Depth (mm):
23
Weight (kg):
51.50
Pressure Chart:
15.5/80-24
157A8
THB230
Ascenso
Industry
Specifications
Load / Speed:
157A8
Pattern:
THB230
Category:
Industry
Width:
15.5
Series:
80
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R1
TL/TT:
TL
40HC:
134
EAN Code:
8904365501375
Factory code:
3001120003
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
3
Section Width (mm):
394
Outer Diameter (mm):
1266
Static Load Radius (mm):
576
Rolling Circumference (mm):
3787
Tread Depth (mm):
38
Weight (kg):
72.50
Pressure Chart:
15.5/80-24
163A8
THB230
Ascenso
Industry
Specifications
Load / Speed:
163A8
Pattern:
THB230
Category:
Industry
Width:
15.5
Series:
80
Structure:
D
Inch:
24
Ply Rating:
16PR
Speed index:
A8
Specification:
R1
TL/TT:
TL
40HC:
134
EAN Code:
8904365501085
Factory code:
3001120004
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
5
Section Width (mm):
394
Outer Diameter (mm):
1266
Static Load Radius (mm):
576
Rolling Circumference (mm):
3787
Tread Depth (mm):
38
Weight (kg):
77.00
Pressure Chart:
15.5/80-24
157A8
THB230
Ascenso
Industry
Specifications
Load / Speed:
157A8
Pattern:
THB230
Category:
Industry
Width:
15.5
Series:
80
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
134
EAN Code:
8904365505908
Factory code:
3001120005
Add. Info:
Heavy Duty
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
3.0
Width (mm):
394
Outer Diameter (mm):
1266
Static Load Radius (mm):
576
Rolling Circumference (mm):
3787
Tread Depth (mm):
38
Weight (kg):
75.30
Pressure Chart:
15.5/80-24
163A8
THB230
Ascenso
Industry
Specifications
Load / Speed:
163A8
Pattern:
THB230
Category:
Industry
Width:
15.5
Series:
80
Structure:
D
Inch:
24
Ply Rating:
16PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
134
EAN Code:
8904365505915
Factory code:
3001120006
Add. Info:
Heavy Duty
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
4.0
Width (mm):
394
Outer Diameter (mm):
1266
Static Load Radius (mm):
576
Rolling Circumference (mm):
3787
Tread Depth (mm):
38
Weight (kg):
78.40
Pressure Chart:
15x4.5-8
FLS692
Ascenso
Industry
Specifications
Pattern:
FLS692
Category:
Industry
Width:
15
Series:
4.5
Structure:
Solid
Inch:
8
Specification:
NHS
TL/TT:
ST
40HC:
4619
EAN Code:
8904365520758
Factory code:
3401010005JJ
Technical details
Recommended Rim:
3.00D-8
Width (mm):
113
Outer Diameter (mm):
377
Weight (kg):
9.70
Pressure Chart:
15x4.5-8
FLS692
Ascenso
Industry
Specifications
Pattern:
FLS692
Category:
Industry
Width:
15
Series:
4.5
Structure:
Solid
Inch:
8
Specification:
NHS
TL/TT:
LO
40HC:
4619
EAN Code:
8904365520765
Factory code:
3401010006JJ
Technical details
Recommended Rim:
3.00D-8
Width (mm):
113
Outer Diameter (mm):
377
Weight (kg):
10.13
Pressure Chart:
16.0/70-20
149A8
BHB310
Ascenso
Industry
Specifications
Load / Speed:
149A8
Pattern:
BHB310
Category:
Industry
Width:
16.5
Series:
70
Structure:
D
Inch:
20
Ply Rating:
16PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
180
EAN Code:
8904365503126
Factory code:
3002020029
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
4.9
Section Width (mm):
404
Outer Diameter (mm):
1074
Static Load Radius (mm):
487
Rolling Circumference (mm):
3212
Tread Depth (mm):
24
Weight (kg):
58.50
Pressure Chart:
16.0/70-20
145G
MPB400
Ascenso
Industry
Specifications
Load / Speed:
145G
Pattern:
MPB400
Category:
Industry
Width:
16.0
Series:
70
Structure:
D
Inch:
20
Ply Rating:
14PR
Speed index:
G
Specification:
R4
TL/TT:
TL
40HC:
154
EAN Code:
8904365504055
Factory code:
3002120006
Technical details
Recommended Rim:
13SDC
Inflation Pressure (bar):
3.5
Section Width (mm):
407
Outer Diameter (mm):
1076
Static Load Radius (mm):
488
Rolling Circumference (mm):
3218
Tread Depth (mm):
25
Weight (kg):
65.70
Pressure Chart:
16.0/70-20
165B
MPB400
Ascenso
Industry
Specifications
Load / Speed:
165B
Pattern:
MPB400
Category:
Industry
Width:
16
Series:
70
Structure:
D
Inch:
20
Ply Rating:
18
Speed index:
B
Specification:
R4
TL/TT:
TL
40HC:
154
EAN Code:
8904365509272
Factory code:
3002120017
Technical details
Recommended Rim:
13SDC
Inflation Pressure (bar):
7.25
Width (mm):
407
Outer Diameter (mm):
1076
Static Load Radius (mm):
488
Rolling Circumference (mm):
3218
Tread Depth (mm):
25
Weight (kg):
71.00
Pressure Chart:
16.00-24
160A8
TGB610
Ascenso
OTR
Specifications
Load / Speed:
160A8
Pattern:
TGB610
Category:
OTR
Width:
16.00
Structure:
D
Inch:
24
Ply Rating:
16PR
Speed index:
A8
Specification:
G2
TL/TT:
TL
40HC:
67
EAN Code:
8904365519165
Factory code:
3003160007
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
3
Width (mm):
375
Outer Diameter (mm):
1348
Static Load Radius (mm):
609
Rolling Circumference (mm):
4032
Tread Depth (mm):
25.4
Weight (kg):
125.90
Pressure Chart:
16.00-25
211A2
PEB720
Ascenso
Industry
Specifications
Load / Speed:
211A2
Pattern:
PEB720
Category:
Industry
Width:
16.00
Structure:
D
Inch:
25
Ply Rating:
32PR
Speed index:
A2
Load / Speed 2:
B
Specification:
IND3
TL/TT:
TL
40HC:
64
EAN Code:
8904365505519
Factory code:
3004060002
Technical details
Recommended Rim:
11.25/2.0
Inflation Pressure (bar):
10.0
Width (mm):
465
Outer Diameter (mm):
1485
Static Load Radius (mm):
666
Rolling Circumference (mm):
4441
Tread Depth (mm):
30
Weight (kg):
233.70
Pressure Chart:
16.5L-16.1
138B
IMB163
Ascenso
AGR
Specifications
Load / Speed:
138B
Pattern:
IMB163
Category:
AGR
Width:
16.5
Structure:
D
Inch:
16.1
Ply Rating:
10PR
Speed index:
B
Specification:
I1 - No Emark
TL/TT:
TL
40HC:
200
EAN Code:
8904365503485
Factory code:
3001050063
Technical details
Recommended Rim:
14.00
Inflation Pressure (bar):
2.5
Section Width (mm):
419
Outer Diameter (mm):
1024
Static Load Radius (mm):
459
Rolling Circumference (mm):
3063
Tread Depth (mm):
11.5
Weight (kg):
44.40
Pressure Chart:
16.5L-16.1
138B
IMB162
Ascenso
AGR
Specifications
Load / Speed:
138B
Pattern:
IMB162
Category:
AGR
Width:
16.5
Structure:
D
Inch:
16.1
Ply Rating:
10PR
Speed index:
B
Specification:
R1
TL/TT:
TL
40HC:
200
EAN Code:
8904365519004
Factory code:
3001050175
Technical details
Recommended Rim:
14
Inflation Pressure (bar):
2.5
Width (mm):
419
Outer Diameter (mm):
1046
Static Load Radius (mm):
467
Rolling Circumference (mm):
3128
Tread Depth (mm):
20.3
Weight (kg):
47.00
Pressure Chart:
16.9-24
133A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
133A8
Pattern:
TDB120
Category:
AGR
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
124
EAN Code:
8904365500217
Factory code:
3001030014
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
1.7
Section Width (mm):
429
Outer Diameter (mm):
1333
Static Load Radius (mm):
604
Rolling Circumference (mm):
3987
Tread Depth (mm):
37.8
Weight (kg):
67.00
Pressure Chart:
16.9-24
149A8
BHB310
Ascenso
Industry
Specifications
Load / Speed:
149A8
Pattern:
BHB310
Category:
Industry
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
124
EAN Code:
8904365500804
Factory code:
3002020018
Technical details
Recommended Rim:
15
Inflation Pressure (bar):
2.6
Section Width (mm):
429
Outer Diameter (mm):
1309
Static Load Radius (mm):
594
Rolling Circumference (mm):
3915
Tread Depth (mm):
27.7
Weight (kg):
74.00
Pressure Chart:
16.9-24
143A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
143A8
Pattern:
TDB120
Category:
AGR
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
124
EAN Code:
8904365501788
Factory code:
3001030034
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
1,7
Section Width (mm):
429
Outer Diameter (mm):
1333
Static Load Radius (mm):
604
Rolling Circumference (mm):
3987
Tread Depth (mm):
37.8
Weight (kg):
75.60
Pressure Chart:
16.9-24
149A8
BHB310
Ascenso
Industry
Specifications
Load / Speed:
149A8
Pattern:
BHB310
Category:
Industry
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
124
EAN Code:
8904365505809
Factory code:
3002020041
Add. Info:
Heavy Duty
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
2.6
Width (mm):
429
Outer Diameter (mm):
1309
Static Load Radius (mm):
594
Rolling Circumference (mm):
3915
Tread Depth (mm):
28
Weight (kg):
79.30
Pressure Chart:
16.9-24
152A8
BOSS BH30
Ascenso
Industry
Specifications
Load / Speed:
152A8
Pattern:
BOSS BH30
Category:
Industry
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
14PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
124
EAN Code:
8904365505816
Factory code:
3002020036
Technical details
Recommended Rim:
DW15L
Inflation Pressure (bar):
3.0
Width (mm):
429
Outer Diameter (mm):
1310
Static Load Radius (mm):
594
Rolling Circumference (mm):
3934
Tread Depth (mm):
27.46
Weight (kg):
90.80
Pressure Chart:
16.9-24
149A8
BHB314
Ascenso
Industry
Specifications
Load / Speed:
149A8
Pattern:
BHB314
Category:
Industry
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
12PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
124
EAN Code:
8904365506684
Factory code:
3002020051
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
2.6
Width (mm):
429
Outer Diameter (mm):
1310
Static Load Radius (mm):
594
Rolling Circumference (mm):
3934
Tread Depth (mm):
30
Weight (kg):
86.20
Pressure Chart:
16.9-24
151A8
BHB314
Ascenso
Industry
Specifications
Load / Speed:
151A8
Pattern:
BHB314
Category:
Industry
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
14
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
124
EAN Code:
8904365506028
Factory code:
3002020046
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
2.9
Width (mm):
429
Outer Diameter (mm):
1310
Static Load Radius (mm):
594
Rolling Circumference (mm):
3934
Tread Depth (mm):
30
Weight (kg):
86.20
Pressure Chart:
16.9-24
133A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
133A8
Pattern:
TDB120
Category:
AGR
Width:
16.9
Structure:
D
Inch:
24
Ply Rating:
8
Speed index:
A8
Specification:
R-1
TL/TT:
TL
40HC:
124
EAN Code:
8904365516331
Factory code:
3001030108
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
1.7
Width (mm):
429
Outer Diameter (mm):
1333
Static Load Radius (mm):
603
Rolling Circumference (mm):
3987
Weight (kg):
70.74
Pressure Chart:
16.9-26
133A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
133A8
Pattern:
TDB120
Category:
AGR
Width:
16.9
Structure:
D
Inch:
26
Ply Rating:
10PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
92
EAN Code:
8904365502839
Factory code:
3001030057
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
1.9
Section Width (mm):
429
Outer Diameter (mm):
1384
Static Load Radius (mm):
629
Rolling Circumference (mm):
4140
Tread Depth (mm):
38.2
Weight (kg):
75.20
Pressure Chart:
16.9-28
135A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
135A8
Pattern:
TDB120
Category:
AGR
Width:
16.9
Structure:
D
Inch:
28
Ply Rating:
8PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
103
EAN Code:
8904365500231
Factory code:
3001030015
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
1.7
Section Width (mm):
429
Outer Diameter (mm):
1435
Static Load Radius (mm):
655
Rolling Circumference (mm):
4292
Tread Depth (mm):
37.8
Weight (kg):
71.40
Pressure Chart:
16.9-28
152A8
BHB310
Ascenso
Industry
Specifications
Load / Speed:
152A8
Pattern:
BHB310
Category:
Industry
Width:
16.9
Structure:
D
Inch:
28
Ply Rating:
12PR
Speed index:
A8
Specification:
R4
TL/TT:
TL
40HC:
99
EAN Code:
8904365500866
Factory code:
3002020008
Technical details
Recommended Rim:
15
Inflation Pressure (bar):
2.6
Section Width (mm):
429
Outer Diameter (mm):
1410
Static Load Radius (mm):
644
Rolling Circumference (mm):
4218
Tread Depth (mm):
27.8
Weight (kg):
83.00
Pressure Chart:
16.9-28
143A8
TDB120
Ascenso
AGR
Specifications
Load / Speed:
143A8
Pattern:
TDB120
Category:
AGR
Width:
16.9
Structure:
D
Inch:
28
Ply Rating:
12PR
Speed index:
A8
Specification:
R1
TL/TT:
TT
40HC:
103
EAN Code:
8904365501931
Factory code:
3001030036
Technical details
Recommended Rim:
W15L
Inflation Pressure (bar):
2.4
Section Width (mm):
429
Outer Diameter (mm):
1435
Static Load Radius (mm):
655
Rolling Circumference (mm):
4292
Tread Depth (mm):
37.8
Weight (kg):
78.00
Pressure Chart:
