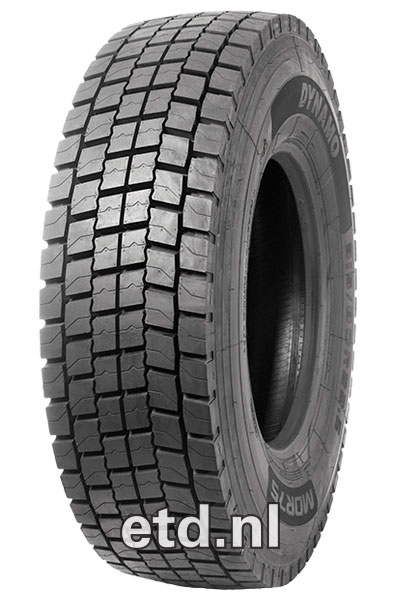

MDR75

Regional Drive

Suitable for medium and long mileage trucks running on paved and highway roads

  • Excellent traction
  • High wear resistance
  • Tread chunking resistance

MDR75

Regional Drive

Suitable for medium and long mileage trucks running on paved and highway roads

  • Excellent traction
  • High wear resistance
  • Tread chunking resistance
Size
Load / speed
Pattern
Brand
Category
Symbol
295/80R22.5
152/149M
MDR75
Dynamo
TBR
Specifications
Pattern:
MDR75
Width:
295
Series:
80
Structure:
R
Inch:
22.5
Ply Rating:
18
Load index:
152/149
Speed index:
M
TL/TT:
TL
Application:
Regional
Position:
40HC:
248
EAN Code:
6922250410450
Factory code:
5041045
Technical details
Recommended Rim:
9
Inflation Pressure (bar):
9/9
Section Width (mm):
298
Outer Diameter (mm):
1044
Static Load Radius (mm):
487
Rolling Circumference (mm):
3184
Tread Depth (mm):
22
Weight (kg):
69.68
Label values
Rolling resistance:
D
Wet / grip:
C
Sound:
B ( dB)
Label code:
573727
Download
315/70R22.5
156/150L
MDR75
Dynamo
TBR
Specifications
Pattern:
MDR75
Width:
315
Series:
70
Structure:
R
Inch:
22.5
Ply Rating:
18
Load index:
156/150
Speed index:
L
TL/TT:
TL
Application:
Regional
Position:
40HC:
238
EAN Code:
6922250410436
Factory code:
5041043
Technical details
Recommended Rim:
9
Inflation Pressure (bar):
9/9
Section Width (mm):
312
Outer Diameter (mm):
1014
Static Load Radius (mm):
468
Rolling Circumference (mm):
3093
Tread Depth (mm):
19.5
Weight (kg):
68.71
Label values
Rolling resistance:
D
Wet / grip:
C
Sound:
B ( dB)
Label code:
547813
Download
315/80R22.5
156/153L
MDR75
Dynamo
TBR
Specifications
Pattern:
MDR75
Width:
315
Series:
80
Structure:
R
Inch:
22.5
Ply Rating:
20PR
Load index:
156/153
Speed index:
L
TL/TT:
TL
Application:
Regional
Position:
40HC:
234
EAN Code:
6922250410467
Factory code:
3120003356
Technical details
Recommended Rim:
9.00X22.5
Inflation Pressure (bar):
8.5
Section Width (mm):
312
Outer Diameter (mm):
1076
Static Load Radius (mm):
500
Rolling Circumference (mm):
3281
Tread Depth (mm):
23
Weight (kg):
77.78
Label values
Rolling resistance:
D
Wet / grip:
C
Sound:
B ( dB)
Label code:
573748
