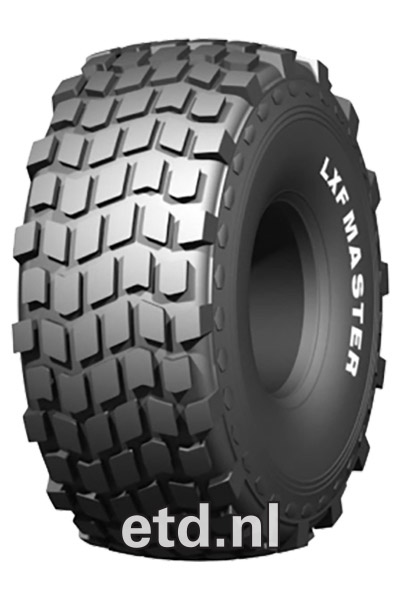

LXF Master

E-7 Radial
  • Multi-rocks with staggered tread blocks provides high mobility
  • Optimized tread designed for desert and soft ground
  • Strong casing provides heavy load at low inflation pressure

LXF Master

E-7 Radial

  • Multi-rocks with staggered tread blocks provides high mobility
  • Optimized tread designed for desert and soft ground
  • Strong casing provides heavy load at low inflation pressure
Size
Load / speed
Pattern
Brand
Category
Symbol
24R20.5
176F
LXF Master
Leao
AGR
Specifications
Pattern:
LXF Master
Width:
24
Structure:
R
Inch:
20.5
Ply Rating:
16PR
Load index:
176
Speed index:
F
Specification:
* E7
TL/TT:
TL
40HC:
58
EAN Code:
6959956801145
Factory code:
211019087
Technical details
Recommended Rim:
18x20.5
Inflation Pressure (bar):
6
Section Width (mm):
80
Outer Diameter (mm):
1370
Static Load Radius (mm):
526
Rolling Circumference (mm):
4046
Tread Depth (mm):
20.5
Load (kg) @ Speed (km/h):
7100
Weight (kg):
194.86
