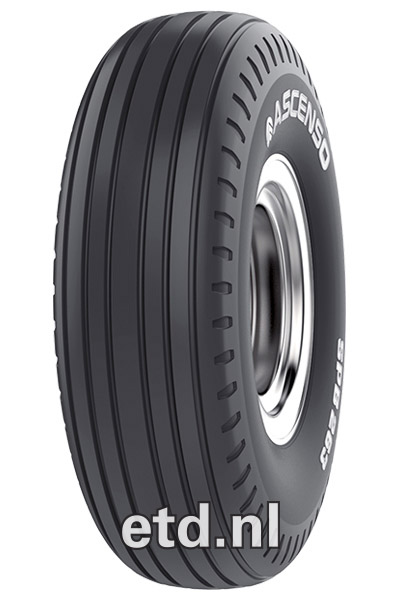

SPB263

Desert Truck / Trailer

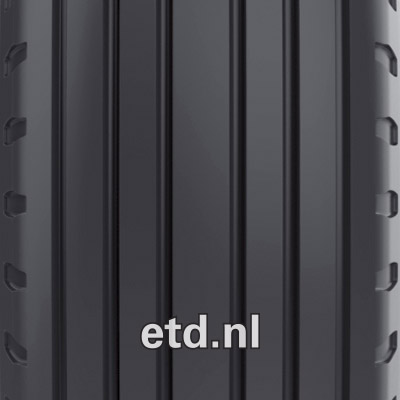

Rib-pattern with wide footprint:

  • Ensures excellent flotation on sandy and loose terrains while delivering exceptional side-directional stability for smooth handling.

Reinforced nylon casing:

  • Enables stable low-pressure operation with enhanced puncture resistance—ideal for desert trucks, pavers, and trailer use

Low-profile tread geometry with self-cleaning shoulders:

  • Promotes even ground pressure, reduces track marks, and ensures uninterrupted operation across sand, soil, and asphalt spreads


SPB263

Desert Truck / Trailer

Rib-pattern with wide footprint:

  • Ensures excellent flotation on sandy and loose terrains while delivering exceptional side-directional stability for smooth handling.

Reinforced nylon casing:

  • Enables stable low-pressure operation with enhanced puncture resistance—ideal for desert trucks, pavers, and trailer use

Low-profile tread geometry with self-cleaning shoulders:

  • Promotes even ground pressure, reduces track marks, and ensures uninterrupted operation across sand, soil, and asphalt spreads

Size
Load / speed
Pattern
Brand
Category
Symbol
14.00-20
SPB263
Ascenso
Industry
Specifications
Pattern:
SPB263
Width:
14
Structure:
D
Inch:
20
Ply Rating:
16
Specification:
E-7
TL/TT:
TT
40HC:
140
EAN Code:
8904365520086
Factory code:
3003200003
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
2.5
Outer Diameter (mm):
1219
Static Load Radius (mm):
547
Rolling Circumference (mm):
3646
Weight (kg):
66.38
Pressure Chart:
click here
Download
18.00-25
SPB263
Ascenso
OTR
Specifications
Pattern:
SPB263
Width:
18.00
Structure:
D
Inch:
25
Ply Rating:
16PR
Specification:
E7
TL/TT:
TL
40HC:
42
EAN Code:
8904365519103
Factory code:
3003200001
Technical details
Recommended Rim:
10
Inflation Pressure (bar):
2.5
Outer Diameter (mm):
1530
Static Load Radius (mm):
687
Rolling Circumference (mm):
4576
Tread Depth (mm):
15.9
Weight (kg):
152.30
Pressure Chart:
click here
Download
21.00-25
SPB263
Ascenso
OTR
Specifications
Pattern:
SPB263
Width:
21.00
Structure:
D
Inch:
25
Ply Rating:
28PR
Specification:
E7
TL/TT:
TL
40HC:
38
EAN Code:
8904365519110
Factory code:
3003200002
Technical details
Recommended Rim:
15
Inflation Pressure (bar):
5.7
Outer Diameter (mm):
1665
Static Load Radius (mm):
742
Rolling Circumference (mm):
4980
Tread Depth (mm):
19.1
Weight (kg):
231.90
Pressure Chart:
click here
Download
29.5-25
SPB263
Ascenso
OTR
Specifications
Pattern:
SPB263
Width:
29.5
Structure:
D
Inch:
25
Ply Rating:
28PR
Specification:
E7
TL/TT:
TL
40HC:
25
EAN Code:
8904365519127
Factory code:
3003200006
Technical details
Recommended Rim:
25
Inflation Pressure (bar):
2.5
Outer Diameter (mm):
1820
Static Load Radius (mm):
806
Rolling Circumference (mm):
5443
Tread Depth (mm):
22.2
Weight (kg):
394.10
Pressure Chart:
click here
Download
