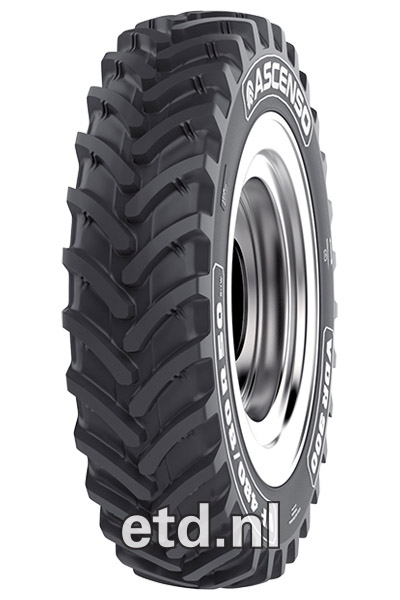

VDR900
VF
- Built to handle 40% more load than a conventional radial tire, or the same load at 40% lower pressure.
- VF tyres with stronger lugs with larger contact patch gives excellent traction with self-cleaning characteristics which decreases slippage, delivers lower fuel consumption, and increases overall productivity.
- Steel belts offers puncture protection and distributes uniform ground pressure which helps less soil compaction and less crop damage.
- Reinforced sidewalls and bead zones offer increased casing stiffness to carry extra load.
- The more radially stiffer tyre makes it possible to transition from field to road and vice versa without adjusting the pressure. At the reduced pressure required for field use, the tyre can also run at full speed on the road yet deliver the same fuel efficiencies as a standard tyre at road pressure.
VDR900
VF
- Built to handle 40% more load than a conventional radial tire, or the same load at 40% lower pressure.
- VF tyres with stronger lugs with larger contact patch gives excellent traction with self-cleaning characteristics which decreases slippage, delivers lower fuel consumption, and increases overall productivity.
- Steel belts offers puncture protection and distributes uniform ground pressure which helps less soil compaction and less crop damage.
- Reinforced sidewalls and bead zones offer increased casing stiffness to carry extra load.
- The more radially stiffer tyre makes it possible to transition from field to road and vice versa without adjusting the pressure. At the reduced pressure required for field use, the tyre can also run at full speed on the road yet deliver the same fuel efficiencies as a standard tyre at road pressure.
Size
Load / speed
Pattern
Brand
Category
Symbol
250/115R54 VF
151D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
250
Series:
115
Structure:
R
Inch:
54
Load index:
151
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
94
EAN Code:
8904365515303
Factory code:
3001040246
Add. Info:
VF
Technical details
Recommended Rim:
W8
Inflation Pressure (bar):
2.6
Outer Diameter (mm):
1947
Static Load Radius (mm):
923
Rolling Circumference (mm):
5847
Tread Depth (mm):
46
Weight (kg):
107.50
Pressure Chart:
320/105R46 VF
172D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
320
Series:
105
Structure:
R
Inch:
46
Load index:
172
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
81
EAN Code:
8904365515860
Factory code:
3001040328
Add. Info:
VF
Technical details
Recommended Rim:
DW11
Inflation Pressure (bar):
4.8
Outer Diameter (mm):
1840
Static Load Radius (mm):
861
Rolling Circumference (mm):
5525
Tread Depth (mm):
47
Weight (kg):
137.50
Pressure Chart:
320/105R54 VF
172D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
320
Series:
105
Structure:
R
Inch:
54
Load index:
172
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
69
EAN Code:
8904365515877
Factory code:
3001040329
Add. Info:
VF
Technical details
Recommended Rim:
DW11
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
2044
Static Load Radius (mm):
963
Rolling Circumference (mm):
6138
Tread Depth (mm):
47
Weight (kg):
152.60
Pressure Chart:
320/85R38 VF
155D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
320
Series:
85
Structure:
R
Inch:
38
Load index:
155
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
97
EAN Code:
8904365519035
Factory code:
3001040322
Add. Info:
VF
Technical details
Recommended Rim:
W11
Inflation Pressure (bar):
3.6
Outer Diameter (mm):
1509
Static Load Radius (mm):
822
Rolling Circumference (mm):
4531
Tread Depth (mm):
44.5
Weight (kg):
93.00
Pressure Chart:
320/90R50 VF
169D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
320
Series:
90
Structure:
R
Inch:
50
Load index:
169
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
65
EAN Code:
8904365506387
Factory code:
3001040176
Add. Info:
VF
Technical details
Recommended Rim:
W11
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
1846
Static Load Radius (mm):
873
Rolling Circumference (mm):
5543
Tread Depth (mm):
44.5
Weight (kg):
121.40
Pressure Chart:
320/90R54 VF
168D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
320
Series:
90
Structure:
R
Inch:
54
Load index:
168
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
60
EAN Code:
8904365505243
Factory code:
3001040165
Add. Info:
VF
Technical details
Recommended Rim:
W11
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
1948
Static Load Radius (mm):
924
Rolling Circumference (mm):
5850
Weight (kg):
131.20
Pressure Chart:
380/105R50 VF
179D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
380
Series:
105
Structure:
R
Inch:
50
Load index:
179
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
45
EAN Code:
8904365508237
Factory code:
3001040184
Add. Info:
VF
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
2068
Static Load Radius (mm):
964
Rolling Circumference (mm):
6210
Tread Depth (mm):
48
Weight (kg):
195.70
Pressure Chart:
380/105R54 VF
180D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
380
Series:
105
Structure:
R
Inch:
54
Load index:
180
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
42
EAN Code:
8904365507681
Factory code:
3001040166
Add. Info:
VF
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
2163
Static Load Radius (mm):
1012
Rolling Circumference (mm):
6495
Tread Depth (mm):
48
Weight (kg):
202.00
Pressure Chart:
380/90R46 VF
173D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
380
Series:
90
Structure:
R
Inch:
46
Load index:
173
Speed index:
D
Specification:
R1W Steel belted
TL/TT:
TL
40HC:
52
EAN Code:
8904365505786
Factory code:
3001040158
Add. Info:
VF
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
1852
Static Load Radius (mm):
866
Rolling Circumference (mm):
5561
Tread Depth (mm):
46.83
Weight (kg):
151.70
Pressure Chart:
380/90R50 VF
175D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
380
Series:
90
Structure:
R
Inch:
50
Load index:
175
Speed index:
D
Specification:
R1W Steel belted
TL/TT:
TL
40HC:
48
EAN Code:
8904365506394
Factory code:
3001040177
Add. Info:
VF
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
3.6
Outer Diameter (mm):
1954
Static Load Radius (mm):
917
Rolling Circumference (mm):
5868
Tread Depth (mm):
46.8
Weight (kg):
164.60
Pressure Chart:
380/90R54 VF
176D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
380
Series:
90
Structure:
R
Inch:
50
Load index:
176
Speed index:
D
Specification:
R1W Steel belted
TL/TT:
TL
40HC:
50
EAN Code:
8904365514825
Factory code:
3001040238
Add. Info:
VF
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
2056
Static Load Radius (mm):
968
Rolling Circumference (mm):
6174
Tread Depth (mm):
46.8
Weight (kg):
184.10
Pressure Chart:
420/80R46 VF
175D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
420
Series:
80
Structure:
R
Inch:
46
Load index:
175
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
51
EAN Code:
8904365518892
Factory code:
3001040334
Add. Info:
VF
Technical details
Recommended Rim:
W14
Inflation Pressure (bar):
4.4
Outer Diameter (mm):
1840
Static Load Radius (mm):
861
Rolling Circumference (mm):
5525
Tread Depth (mm):
48.5
Weight (kg):
157.80
Pressure Chart:
420/95R50
177D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
420
Series:
95
Structure:
R
Inch:
50
Load index:
177
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
56
EAN Code:
8904365507667
Factory code:
3001040160
Technical details
Recommended Rim:
W14L
Inflation Pressure (bar):
3.6
Outer Diameter (mm):
2068
Static Load Radius (mm):
964
Rolling Circumference (mm):
6210
Tread Depth (mm):
49.5
Weight (kg):
190.50
Pressure Chart:
480/80R50 VF
179D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
480
Series:
80
Structure:
R
Inch:
50
Load index:
179
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
34
EAN Code:
8904365506141
Factory code:
3001040162
Add. Info:
VF
Technical details
Recommended Rim:
DW16L
Inflation Pressure (bar):
2.4
Outer Diameter (mm):
2038
Static Load Radius (mm):
952
Rolling Circumference (mm):
6120
Tread Depth (mm):
44.5
Weight (kg):
212.80
Pressure Chart:
480/95R50
176D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
480
Series:
95
Structure:
R
Inch:
50
Load index:
176
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
30
EAN Code:
8904365507674
Factory code:
3001040164
Technical details
Recommended Rim:
W16L
Inflation Pressure (bar):
2.4
Outer Diameter (mm):
2182
Static Load Radius (mm):
1011
Rolling Circumference (mm):
6552
Tread Depth (mm):
53
Weight (kg):
242.70
Pressure Chart:
520/85R46 VF
173D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
520
Series:
85
Structure:
R
Inch:
46
Load index:
173
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
28
EAN Code:
8904365506134
Factory code:
3001040167
Add. Info:
VF
Technical details
Recommended Rim:
DW18L
Inflation Pressure (bar):
1.6
Outer Diameter (mm):
2052
Static Load Radius (mm):
949
Rolling Circumference (mm):
6162
Tread Depth (mm):
53
Weight (kg):
232.00
Pressure Chart:
580/85R42 VF
183D
VDR900
Ascenso
AGR
Specifications
Pattern:
VDR900
Width:
580
Series:
85
Structure:
R
Inch:
42
Load index:
183
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
30
EAN Code:
8904365506127
Factory code:
3001040168
Add. Info:
VF
Technical details
Recommended Rim:
DW20B
Inflation Pressure (bar):
2
Outer Diameter (mm):
2040
Static Load Radius (mm):
935
Rolling Circumference (mm):
6126
Tread Depth (mm):
56.5
Weight (kg):
273.50
Pressure Chart:
