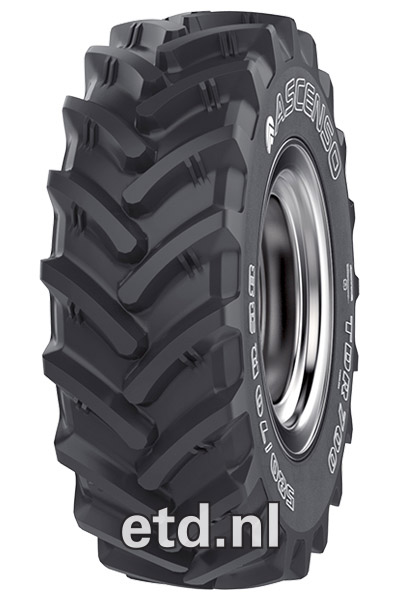

TDR700
4WD Tractor

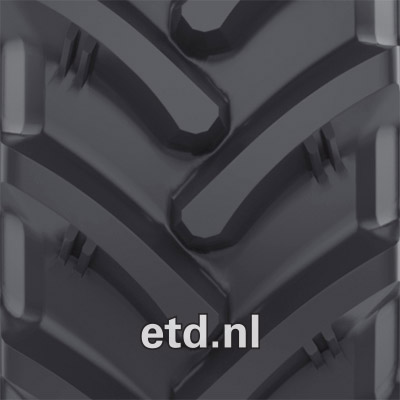

Tractor Tyres designed with a unique mud breaker:
- Low soil compaction
- High traction
- Excellent driving experience
TDR700
4WD Tractor
Tractor Tyres designed with a unique mud breaker:
- Low soil compaction
- High traction
- Excellent driving experience
Size
Load / speed
Pattern
Brand
Category
Symbol
200/70R16
94D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
200
Series:
70
Structure:
R
Inch:
16
Load index:
94
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
561
EAN Code:
8904365515815
Factory code:
3001040330
Technical details
Recommended Rim:
W6
Inflation Pressure (bar):
2.4
Outer Diameter (mm):
686
Static Load Radius (mm):
319
Rolling Circumference (mm):
2052
Tread Depth (mm):
32.5
Weight (kg):
15.50
Pressure Chart:
320/70R24
116D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
320
Series:
70
Structure:
R
Inch:
24
Load index:
116
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
198
EAN Code:
8904365501733
Factory code:
3001040061
Technical details
Recommended Rim:
W10
Inflation Pressure (bar):
1,6
Section Width (mm):
319
Outer Diameter (mm):
1094
Static Load Radius (mm):
505
Rolling Circumference (mm):
3272
Tread Depth (mm):
40.3
Weight (kg):
47.50
Pressure Chart:
360/70R20
129D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
360
Series:
70
Structure:
R
Inch:
20
Load index:
129
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
180
EAN Code:
8904365503355
Factory code:
3001040127
Technical details
Recommended Rim:
W11
Inflation Pressure (bar):
2.4
Section Width (mm):
357
Outer Diameter (mm):
1042
Static Load Radius (mm):
474
Rolling Circumference (mm):
3116
Tread Depth (mm):
41
Weight (kg):
50.50
Pressure Chart:
360/70R24
122D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
360
Series:
70
Structure:
R
Inch:
24
Load index:
122
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
146
EAN Code:
8904365501726
Factory code:
3001040062
Technical details
Recommended Rim:
W11
Inflation Pressure (bar):
1,6
Section Width (mm):
357
Outer Diameter (mm):
1152
Static Load Radius (mm):
529
Rolling Circumference (mm):
3446
Tread Depth (mm):
41.4
Weight (kg):
61.00
Pressure Chart:
360/70R28
125D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
360
Series:
70
Structure:
R
Inch:
28
Load index:
125
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
133
EAN Code:
8904365501719
Factory code:
3001040066
Technical details
Recommended Rim:
W11
Inflation Pressure (bar):
1,6
Section Width (mm):
357
Outer Diameter (mm):
1251
Static Load Radius (mm):
579
Rolling Circumference (mm):
3742
Tread Depth (mm):
41.4
Weight (kg):
68.00
Pressure Chart:
380/70R20
122D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
380
Series:
70
Structure:
R
Inch:
20
Load index:
122
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
154
EAN Code:
8904365503362
Factory code:
3001040128
Technical details
Recommended Rim:
W11
Inflation Pressure (bar):
1.6
Section Width (mm):
380
Outer Diameter (mm):
1082
Static Load Radius (mm):
491
Rolling Circumference (mm):
3236
Tread Depth (mm):
41.5
Weight (kg):
56.50
Pressure Chart:
380/70R24
125D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
380
Series:
70
Structure:
R
Inch:
24
Load index:
125
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
144
EAN Code:
8904365501702
Factory code:
3001040063
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
1,6
Section Width (mm):
380
Outer Diameter (mm):
1190
Static Load Radius (mm):
545
Rolling Circumference (mm):
3560
Tread Depth (mm):
42.2
Weight (kg):
65.50
Pressure Chart:
380/70R28
127D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
380
Series:
70
Structure:
R
Inch:
28
Load index:
127
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
120
EAN Code:
8904365501696
Factory code:
3001040067
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
1,6
Section Width (mm):
380
Outer Diameter (mm):
1293
Static Load Radius (mm):
596
Rolling Circumference (mm):
3868
Tread Depth (mm):
41.9
Weight (kg):
73.50
Pressure Chart:
400/75R38
138D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
400
Series:
75
Structure:
R
Inch:
38
Load index:
138
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
70
EAN Code:
8904365509487
Factory code:
3001040218
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.6
Outer Diameter (mm):
1565
Static Load Radius (mm):
730
Rolling Circumference (mm):
4700
Tread Depth (mm):
48
Weight (kg):
101.80
Pressure Chart:
420/70R24
130D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
420
Series:
70
Structure:
R
Inch:
24
Load index:
130
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
119
EAN Code:
8904365501740
Factory code:
3001040064
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1,6
Section Width (mm):
418
Outer Diameter (mm):
1248
Static Load Radius (mm):
569
Rolling Circumference (mm):
3733
Tread Depth (mm):
44.3
Weight (kg):
80.70
Pressure Chart:
420/70R24
130D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
420
Series:
70
Structure:
R
Inch:
24
Load index:
130
Speed index:
D
Specification:
R1W Steel Belted
TL/TT:
TL
40HC:
119
EAN Code:
8904365507773
Factory code:
X40VB
Add. Info:
Stubble Guard
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.6
Outer Diameter (mm):
1248
Static Load Radius (mm):
569
Rolling Circumference (mm):
3733
Tread Depth (mm):
44.32
Weight (kg):
92.70
Pressure Chart:
420/70R28
133D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
420
Series:
70
Structure:
R
Inch:
28
Load index:
133
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
90
EAN Code:
8904365501689
Factory code:
3001040068
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1,6
Section Width (mm):
418
Outer Diameter (mm):
1349
Static Load Radius (mm):
619
Rolling Circumference (mm):
4035
Tread Depth (mm):
44.3
Weight (kg):
88.50
Pressure Chart:
420/70R28
133D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
420
Series:
70
Structure:
R
Inch:
28
Load index:
133
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
82
EAN Code:
8904365511701
Factory code:
3001040259
Add. Info:
Heavy Duty
Technical details
Recommended Rim:
W15
Inflation Pressure (bar):
1.6
Section Width (mm):
479
Outer Diameter (mm):
1421
Static Load Radius (mm):
649
Rolling Circumference (mm):
4250
Tread Depth (mm):
48.9
Weight (kg):
90.70
Pressure Chart:
420/70R30
134D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
420
Series:
70
Structure:
R
Inch:
30
Load index:
134
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
65
EAN Code:
8904365501672
Factory code:
3001040070
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1,6
Section Width (mm):
418
Outer Diameter (mm):
1398
Static Load Radius (mm):
644
Rolling Circumference (mm):
4182
Tread Depth (mm):
44.3
Weight (kg):
95.50
Pressure Chart:
480/70R24
138D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
480
Series:
70
Structure:
R
Inch:
24
Load index:
138
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
90
EAN Code:
8904365501665
Factory code:
3001040065
Technical details
Recommended Rim:
W15
Inflation Pressure (bar):
1,6
Section Width (mm):
479
Outer Diameter (mm):
1316
Static Load Radius (mm):
597
Rolling Circumference (mm):
3936
Tread Depth (mm):
48.9
Weight (kg):
99.50
Pressure Chart:
480/70R28
140D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
480
Series:
70
Structure:
R
Inch:
28
Load index:
140
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
82
EAN Code:
8904365501658
Factory code:
3001040069
Technical details
Recommended Rim:
W15
Inflation Pressure (bar):
1,6
Section Width (mm):
479
Outer Diameter (mm):
1421
Static Load Radius (mm):
649
Rolling Circumference (mm):
4250
Tread Depth (mm):
48.9
Weight (kg):
111.00
Pressure Chart:
480/70R30
141D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
480
Series:
70
Structure:
R
Inch:
30
Load index:
141
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
62
EAN Code:
8904365501641
Factory code:
3001040071
Technical details
Recommended Rim:
W15
Inflation Pressure (bar):
1,6
Section Width (mm):
479
Outer Diameter (mm):
1478
Static Load Radius (mm):
677
Rolling Circumference (mm):
4421
Tread Depth (mm):
48.9
Weight (kg):
116.50
Pressure Chart:
480/70R34
157D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
480
Series:
70
Structure:
R
Inch:
34
Load index:
157
Speed index:
D
Specification:
R-1W
TL/TT:
TL
40HC:
55
EAN Code:
8904365511411
Factory code:
3001040151
Technical details
Recommended Rim:
W15
Inflation Pressure (bar):
3.6
Outer Diameter (mm):
1580
Static Load Radius (mm):
727
Rolling Circumference (mm):
4745
Weight (kg):
145.10
Pressure Chart:
480/70R34
143D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
480
Series:
70
Structure:
R
Inch:
34
Load index:
143
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
55
EAN Code:
8904365501634
Factory code:
3001040072
Technical details
Recommended Rim:
W15
Inflation Pressure (bar):
1,6
Section Width (mm):
479
Outer Diameter (mm):
1580
Static Load Radius (mm):
728
Rolling Circumference (mm):
4726
Tread Depth (mm):
48.9
Weight (kg):
128.50
Pressure Chart:
480/70R38
145D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
480
Series:
70
Structure:
R
Inch:
38
Load index:
145
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
50
EAN Code:
8904365501627
Factory code:
3001040074
Technical details
Recommended Rim:
W15
Inflation Pressure (bar):
1,6
Section Width (mm):
479
Outer Diameter (mm):
1681
Static Load Radius (mm):
778
Rolling Circumference (mm):
5028
Tread Depth (mm):
48.9
Weight (kg):
139.50
Pressure Chart:
520/70R34
148D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
520
Series:
70
Structure:
R
Inch:
34
Load index:
148
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
43
EAN Code:
8904365501610
Factory code:
3001040073
Technical details
Recommended Rim:
W16
Inflation Pressure (bar):
1,6
Section Width (mm):
516
Outer Diameter (mm):
1640
Static Load Radius (mm):
753
Rolling Circumference (mm):
4905
Tread Depth (mm):
54.4
Weight (kg):
150.00
Pressure Chart:
520/70R38
150D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
520
Series:
70
Structure:
R
Inch:
38
Load index:
150
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
42
EAN Code:
8904365511718
Factory code:
3001040260
Add. Info:
Heavy Duty
Technical details
Recommended Rim:
W16
Inflation Pressure (bar):
1,6
Section Width (mm):
516
Outer Diameter (mm):
1749
Static Load Radius (mm):
806
Rolling Circumference (mm):
5231
Tread Depth (mm):
54.4
Weight (kg):
168.30
Pressure Chart:
580/70R38
180D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
580
Series:
70
Structure:
R
Inch:
38
Load index:
180
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
35
EAN Code:
8904365501924
Factory code:
3001040106
Technical details
Recommended Rim:
DW18L
Inflation Pressure (bar):
5.5
Section Width (mm):
577
Outer Diameter (mm):
1827
Static Load Radius (mm):
839
Rolling Circumference (mm):
5465
Tread Depth (mm):
57.9
Weight (kg):
224.00
Pressure Chart:
580/70R38
155D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
580
Series:
70
Structure:
R
Inch:
38
Load index:
155
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
35
EAN Code:
8904365501757
Factory code:
3001040076
Technical details
Recommended Rim:
DW18L
Inflation Pressure (bar):
1,6
Section Width (mm):
577
Outer Diameter (mm):
1827
Static Load Radius (mm):
839
Rolling Circumference (mm):
5465
Tread Depth (mm):
57.9
Weight (kg):
204.50
Pressure Chart:
580/70R42
162D
TDR700
Ascenso
AGR
Specifications
Pattern:
TDR700
Width:
580
Series:
70
Structure:
R
Inch:
42
Load index:
162
Speed index:
D
Specification:
R1W
TL/TT:
TL
40HC:
36
EAN Code:
8904365519011
Factory code:
3001040335
Technical details
Recommended Rim:
W18L
Inflation Pressure (bar):
2.4
Outer Diameter (mm):
1879
Static Load Radius (mm):
868
Rolling Circumference (mm):
5620
Tread Depth (mm):
57.5
Weight (kg):
225.30
Pressure Chart:
