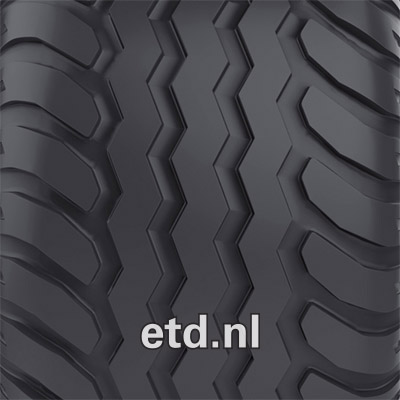

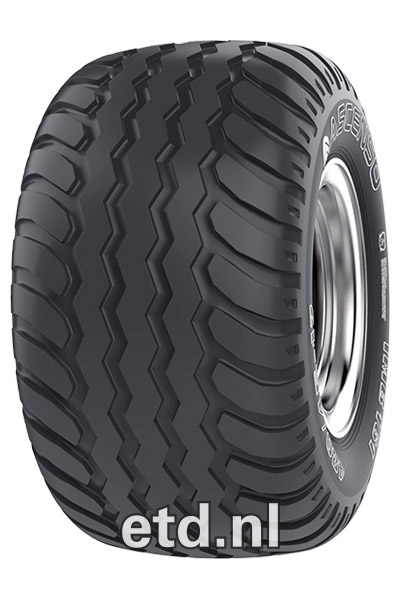

IMB161
Implement
Wider Footprint:
Minimises soil compaction and protects the grassland
Optimum Height to Width Ratio:
Ensures stability
Strong Nylon Carcass:
Provides high load-carrying capacity
IMB161
Implement
Wider Footprint:
Minimises soil compaction and protects the grassland
Optimum Height to Width Ratio:
Ensures stability
Strong Nylon Carcass:
Provides high load-carrying capacity
Size
Load / speed
Pattern
Brand
Category
Symbol
260/70-15.3
122A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
260
Series:
70
Structure:
D
Inch:
15.3
Ply Rating:
10PR
Load index:
122
Speed index:
A8
Load / Speed 2:
110A8
Specification:
I2
TL/TT:
TL
40HC:
556
EAN Code:
8904365500897
Factory code:
3001050011
Technical details
Recommended Rim:
9
Inflation Pressure (bar):
3.2
Section Width (mm):
268
Outer Diameter (mm):
753
Static Load Radius (mm):
345
Rolling Circumference (mm):
2253
Tread Depth (mm):
11.1
Weight (kg):
16.90
Pressure Chart:
260/70-15.3
130A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
260
Series:
70
Structure:
D
Inch:
15.3
Ply Rating:
14PR
Load index:
130
Speed index:
A8
Load / Speed 2:
118A8
Specification:
I2
TL/TT:
TL
40HC:
556
EAN Code:
8904365502181
Factory code:
3001050012
Technical details
Recommended Rim:
9
Inflation Pressure (bar):
5,5
Section Width (mm):
268
Outer Diameter (mm):
753
Static Load Radius (mm):
345
Rolling Circumference (mm):
2253
Tread Depth (mm):
11.1
Weight (kg):
18.00
Pressure Chart:
300/80-15.3
139A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
300
Series:
80
Structure:
D
Inch:
15.3
Ply Rating:
14PR
Load index:
139
Speed index:
A8
Specification:
I2
TL/TT:
TL
40HC:
368
EAN Code:
8904365503249
Factory code:
3001050059
Technical details
Recommended Rim:
9
Inflation Pressure (bar):
3.7
Section Width (mm):
295
Outer Diameter (mm):
869
Static Load Radius (mm):
392
Rolling Circumference (mm):
2599
Tread Depth (mm):
10
Weight (kg):
23.20
Pressure Chart:
340/55-16
133A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
340
Series:
55
Structure:
D
Inch:
16
Ply Rating:
12PR
Load index:
133
Speed index:
A8
Load / Speed 2:
121A8
Specification:
I2
TL/TT:
TL
40HC:
360
EAN Code:
8904365500934
Factory code:
3001050015
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
3.2
Section Width (mm):
343
Outer Diameter (mm):
780
Static Load Radius (mm):
358
Rolling Circumference (mm):
2333
Tread Depth (mm):
12.1
Weight (kg):
21.60
Pressure Chart:
340/55-16
136A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
340
Series:
55
Structure:
D
Inch:
16
Load index:
136
Speed index:
A8
Load / Speed 2:
124A8
Specification:
I2
TL/TT:
TL
40HC:
360
EAN Code:
8904365509623
Factory code:
3001050109
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
3.6
Outer Diameter (mm):
780
Static Load Radius (mm):
358
Rolling Circumference (mm):
2333
Tread Depth (mm):
12.1
Weight (kg):
22.00
Pressure Chart:
340/55-16
140A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
340
Series:
55
Structure:
D
Inch:
16
Ply Rating:
18PR
Load index:
140
Speed index:
A8
Load / Speed 2:
128A8
TL/TT:
TL
40HC:
360
EAN Code:
8904365501979
Factory code:
3001050041
Technical details
Recommended Rim:
11
Inflation Pressure (bar):
4.8
Section Width (mm):
343
Outer Diameter (mm):
780
Static Load Radius (mm):
358
Rolling Circumference (mm):
2333
Tread Depth (mm):
12.1
Weight (kg):
24.00
Pressure Chart:
380/55-17
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
380
Series:
55
Structure:
D
Inch:
17
Ply Rating:
10
Specification:
I-2
TL/TT:
TL
40HC:
330
EAN Code:
8904365515457
Factory code:
3001050095
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
2.6
Outer Diameter (mm):
850
Static Load Radius (mm):
389
Rolling Circumference (mm):
2543
Weight (kg):
29.88
Pressure Chart:
380/55-17
141A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
380
Series:
55
Structure:
D
Inch:
17
Ply Rating:
14PR
Load index:
141
Speed index:
A8
Load / Speed 2:
128A8
Specification:
I2
TL/TT:
TL
40HC:
260
EAN Code:
8904365500941
Factory code:
3001050016
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
3.2
Section Width (mm):
380
Outer Diameter (mm):
850
Static Load Radius (mm):
389
Rolling Circumference (mm):
2543
Tread Depth (mm):
12.1
Weight (kg):
29.80
Pressure Chart:
380/55-17
146A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
380
Series:
55
Structure:
D
Inch:
17
Ply Rating:
18PR
Load index:
146
Speed index:
A8
Load / Speed 2:
134A8
TL/TT:
TL
40HC:
260
EAN Code:
8904365501986
Factory code:
3001050042
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
4.6
Section Width (mm):
380
Outer Diameter (mm):
850
Static Load Radius (mm):
389
Rolling Circumference (mm):
2543
Tread Depth (mm):
12.1
Weight (kg):
33.10
Pressure Chart:
400/60-15.5
149A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
400
Series:
60
Structure:
D
Inch:
15.5
Ply Rating:
18PR
Load index:
149
Speed index:
A8
Load / Speed 2:
136A8
Specification:
I2
TL/TT:
TL
40HC:
270
EAN Code:
8904365502525
Factory code:
3001050047
Technical details
Recommended Rim:
13.00
Inflation Pressure (bar):
4.5
Section Width (mm):
404
Outer Diameter (mm):
874
Static Load Radius (mm):
395
Rolling Circumference (mm):
2614
Tread Depth (mm):
12.1
Weight (kg):
34.90
Pressure Chart:
400/60-15.5
145A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
400
Series:
60
Structure:
D
Inch:
15.5
Ply Rating:
14PR
Load index:
145
Speed index:
A8
Load / Speed 2:
132A8
Specification:
I2
TL/TT:
TL
40HC:
270
EAN Code:
8904365502518
Factory code:
3001050046
Technical details
Recommended Rim:
13.00
Inflation Pressure (bar):
3.6
Section Width (mm):
404
Outer Diameter (mm):
874
Static Load Radius (mm):
395
Rolling Circumference (mm):
2614
Tread Depth (mm):
12.1
Weight (kg):
32.90
Pressure Chart:
400/60-15.5
148A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
400
Series:
60
Structure:
D
Inch:
15.5
Ply Rating:
16PR
Load index:
148
Speed index:
A8
Load / Speed 2:
136A8
Specification:
I2
TL/TT:
TL
40HC:
270
EAN Code:
8904365500927
Factory code:
3001050014
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
4.2
Section Width (mm):
404
Outer Diameter (mm):
874
Static Load Radius (mm):
395
Rolling Circumference (mm):
2614
Tread Depth (mm):
12.1
Weight (kg):
33.00
Pressure Chart:
400/70-20
156A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
400
Series:
70
Structure:
D
Inch:
20
Ply Rating:
16PR
Load index:
156
Speed index:
A8
Load / Speed 2:
144A8
Specification:
I2
TL/TT:
TL
40HC:
154
EAN Code:
8904365502976
Factory code:
3001050054
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
4.0
Section Width (mm):
414
Outer Diameter (mm):
1072
Static Load Radius (mm):
487
Rolling Circumference (mm):
3206
Tread Depth (mm):
12
Weight (kg):
48.50
Pressure Chart:
480/45-17
149A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
480
Series:
45
Structure:
D
Inch:
17
Ply Rating:
18PR
Load index:
149
Speed index:
A8
Load / Speed 2:
136A8
TL/TT:
TL
40HC:
217
EAN Code:
8904365501993
Factory code:
3001050043
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
3.5
Section Width (mm):
479
Outer Diameter (mm):
864
Static Load Radius (mm):
395
Rolling Circumference (mm):
2585
Tread Depth (mm):
13.1
Weight (kg):
43.70
Pressure Chart:
480/45-17
146A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
480
Series:
45
Structure:
D
Inch:
17
Ply Rating:
14PR
Load index:
146
Speed index:
A8
Load / Speed 2:
134A8
Specification:
I2
TL/TT:
TL
40HC:
217
EAN Code:
8904365500958
Factory code:
3001050017
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
3.2
Section Width (mm):
479
Outer Diameter (mm):
864
Static Load Radius (mm):
395
Rolling Circumference (mm):
2585
Tread Depth (mm):
13.1
Weight (kg):
42.20
Pressure Chart:
500/50-17
143A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
500
Series:
50
Structure:
D
Inch:
17
Ply Rating:
10PR
Load index:
143
Speed index:
A8
Load / Speed 2:
131A8
Specification:
I2
TL/TT:
TL
40HC:
198
EAN Code:
8904365501597
Factory code:
3001050018
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
2,0
Section Width (mm):
503
Outer Diameter (mm):
932
Static Load Radius (mm):
423
Rolling Circumference (mm):
2788
Tread Depth (mm):
13.1
Weight (kg):
50.40
Pressure Chart:
500/50-17
154A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
500
Series:
50
Structure:
D
Inch:
17
Ply Rating:
18PR
Load index:
154
Speed index:
A8
Load / Speed 2:
142A8
TL/TT:
TL
40HC:
198
EAN Code:
8904365502006
Factory code:
3001050020
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
4
Section Width (mm):
503
Outer Diameter (mm):
932
Static Load Radius (mm):
423
Rolling Circumference (mm):
2788
Tread Depth (mm):
13.1
Weight (kg):
52.80
Pressure Chart:
500/50-17
149A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
500
Series:
50
Structure:
D
Inch:
17
Ply Rating:
14PR
Load index:
149
Speed index:
A8
Load / Speed 2:
137A8
Specification:
I2
TL/TT:
TL
40HC:
198
EAN Code:
8904365500965
Factory code:
3001050019
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
2.8
Section Width (mm):
503
Outer Diameter (mm):
932
Static Load Radius (mm):
423
Rolling Circumference (mm):
2788
Tread Depth (mm):
13.1
Weight (kg):
51.80
Pressure Chart:
500/55-20
150A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
500
Series:
55
Structure:
D
Inch:
20
Ply Rating:
10PR
Load index:
150
Speed index:
A8
Load / Speed 2:
142A8
Specification:
I2
TL/TT:
TL
40HC:
120
EAN Code:
8904365501580
Factory code:
3001050021
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
2,4
Section Width (mm):
503
Outer Diameter (mm):
1058
Static Load Radius (mm):
481
Rolling Circumference (mm):
3165
Tread Depth (mm):
13.1
Weight (kg):
52.60
Pressure Chart:
500/55-20
155A8
IMB161
Ascenso
AGR
Specifications
Pattern:
IMB161
Width:
500
Series:
55
Structure:
D
Inch:
20
Ply Rating:
12PR
Load index:
155
Speed index:
A8
Load / Speed 2:
143A8
Specification:
I2
TL/TT:
TL
40HC:
120
EAN Code:
8904365501009
Factory code:
3001050022
Technical details
Recommended Rim:
16
Inflation Pressure (bar):
3.2
Section Width (mm):
503
Outer Diameter (mm):
1058
Static Load Radius (mm):
481
Rolling Circumference (mm):
3165
Tread Depth (mm):
13.1
Weight (kg):
55.70
Pressure Chart:
